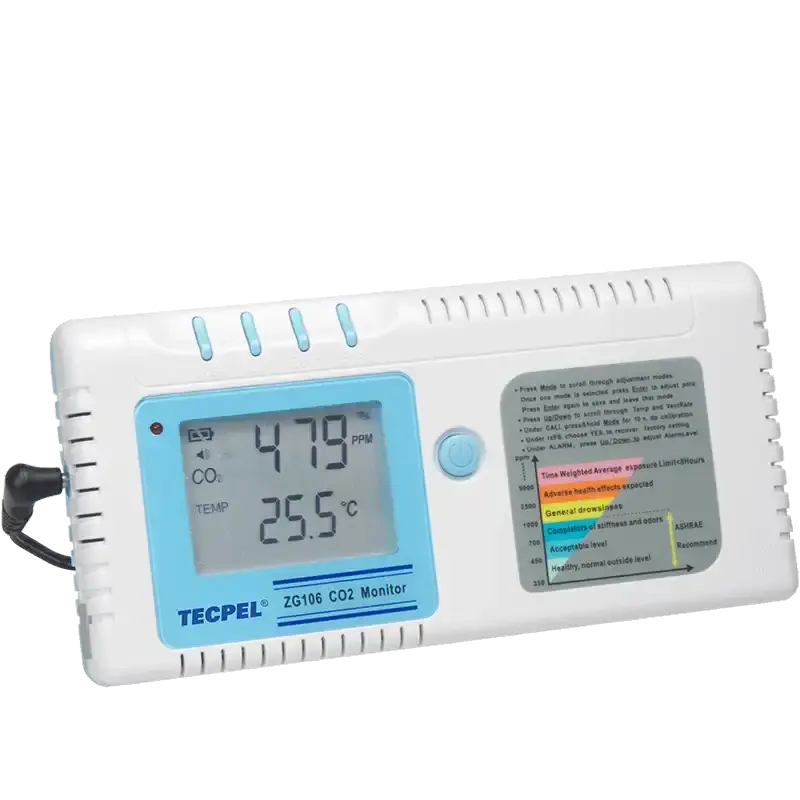

The ZG-106 CO2 Meter from Tecpel is an essential tool for monitoring indoor air quality, designed to measure CO2 concentration alongside ambient temperature and humidity. Flexible, lightweight, and easy to operate, this versatile device ensures accurate readings and enhanced comfort in any environment. Ideal for use in offices, schools, exhibition halls, and shopping centers, the ZG-106 CO2 monitor supports a healthier indoor atmosphere. Established in 1990, Taiwan-based Tecpel specializes in electronic test and measurement instruments, offering reliable solutions that meet the highest standards of performance and durability.

Measurement Specification
CO2 Measuring Range : 0~3,000 ppm
Temperature Measuring Range : 0~50°C
CO2 Resolution : 1ppm @ 0~1,000ppm
Temperature Resolution : 0.1°C (0.1°F)
CO2 Accuracy : ±50ppm @ When lower 1,000ppm，the other is 5%
Repeatability : ±20 ppm
Temperature Coefficient : Reading Value ±0.1% or ±2 ppm, Take the largest value at 25°C
Pressure Coefficient : 0.13% of Reading value / MmHg (It can input correct height by user))
Opening Time : The concentration value will be displayed for about 15 seconds after power on
Reaction Time : Approx. 2 Mins (63% changing )
Warm-up Time : Lower than 60 Sec. at 22°C (Time to complete)
Display Choice : °F / °C, or Off.
Product Features
DATA LOGGING : It can record 48 CO2 and temperature values measured in the past 24 hours, one record every 30 minutes
MAXIMUM AND MINIMUM FUNCTION : It can record the maximum and minimum measured values of CO2 since the device is turned on
ALARM : Alarm when CO2 concentration reach 1000ppm，1000ppm is ASHRAE recommend limit。It can also adjust the ppm value of alarm setting or cancel the alarm function by user
RESTORE FACTORY MODE : After ZG-106 is adjusted, changed or damaged, the factory settings can be restored
Multi-mode Adjustment Mode : Altitude Mode, Alarm Mode, Outdoor Mode, User Calibration Mode, Data-Log Mode
Product Information
Working Environment : 0~50°C / lower than 95%RH without dew。
Storage Environment : -10~40°C / lower than 70%RH without dew。
Elevation Limitation : Lower than 1,000 meters
Sensor : NDIR (Non-dispersive infrared)
Power Supply : DC 1.5V AA Battery x 4 or DC6V
Battery Life : approx 80h
Dimension : 166 × 81 × 26 mm
Weight : 273.6 g (Battery Including)
Accessory : Instruction Manual、Battery
